Skin Fit

Skin Fit

Touch performance and versatility

Finger touches

Simultaneously

Touch response rate

The fastest large format procap ever

20'' to 105''

Standard & custom sizes



Highly customizable

Skin Fit is available in 16:9, 4:3 as well as custom formats. The flexible flat cables (FFC) can be positioned on any side of the touch sensor and can be manufactured with a longer tail.

Easy to integrate

The touch sensor uses a short 3 connector flexible flat cable to ensure an easy integration It requires almost no effort for cable routing. The touch controller board has screw holes to allow a more rigid fixation, if wanted.

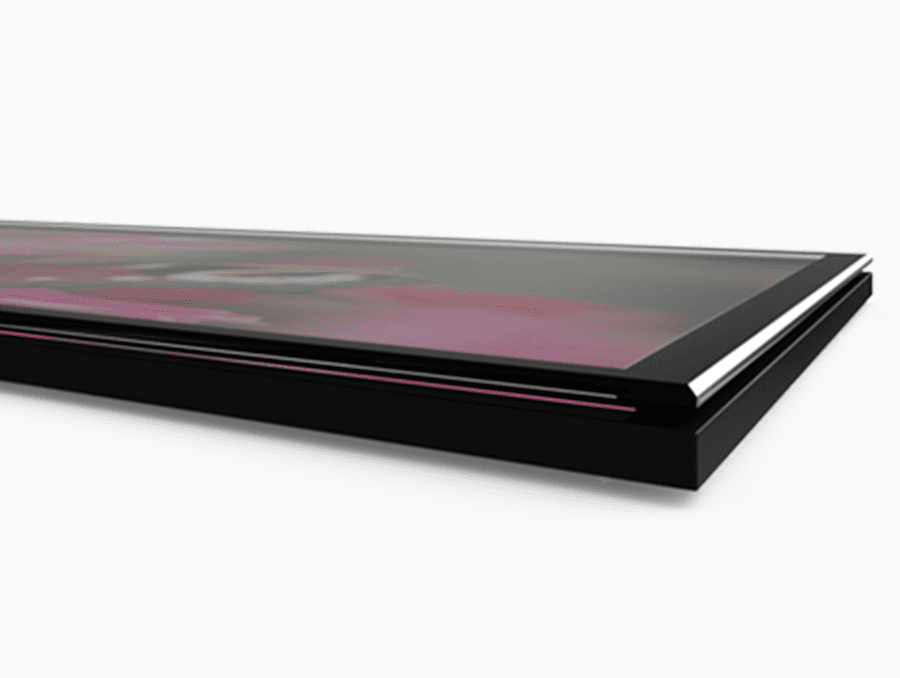

Broad range of glass thickness

Skin Fit can be laminated on glass up to 15mm thick. Such a wide range of thickness fits nearly any project requirements. For instance, an outdoor kiosks require thicker glass for increased protection. Even for indoor uses, traditionally a bigger display will require a thicker glass, for additional safety.


16:9, 4:3, 21:9, 16:10, and many others

The touch sensor is available in the standard aspect ratios 16:9 and 4:3. It can also be manufactured in custom formats such as 21:9, 5:3, 16:10, stretched formats, amongst others. By being totally customizable, it gives creative freedom to design uncommon and appealing structures.

I need this

Sensor thickness

Ensure the optical integrity of your touchscreen and benefit from full transparency. DISPLAX touch sensors are manufactured using limpid and thin materials, resulting in a film with just 100 micron of thickness.


Touchscreen mirrors

Interactive mirrors are a new trend for fashion brands and retailers alike. When customers are in front of a mirror in a fitting room there’s an opportunity to display more products or even superimpose a pair of glasses, a blouse or a tie.

Watch Video

Customizable touch sensor

Skin Fit was designed to be as flexible and customizable as possible. The goal is to make the integration with the structure as simple and quick as possible.

A great touch experience that fits any structure

XTR-Shield Plus

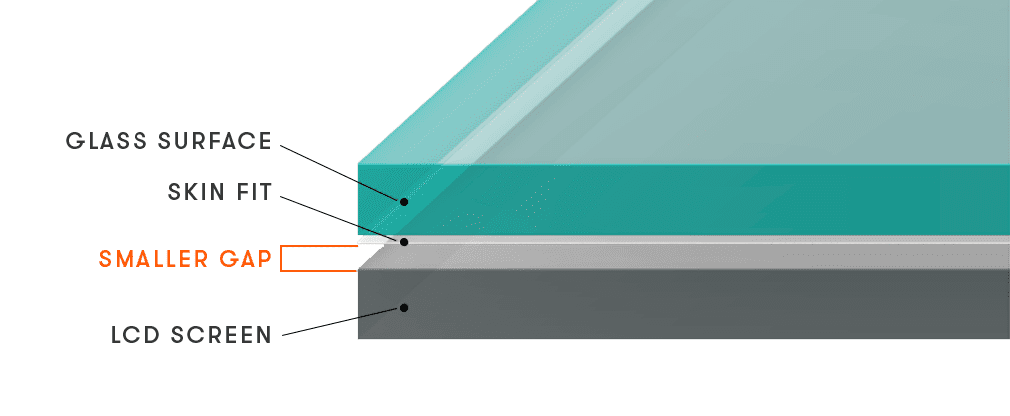

Skin Fit benefits from the latest generation of DISPLAX’s proprietary noise filtering technology, XTR-Shield Plus. It filters the noise emanated from the display that otherwise would affect the touch detection. As a consequence, the sensor can be placed closer than ever to the display, minimizing the parallax effect caused by the gap between the touch sensor and the screen.


Flexible form factor

Wide customization options

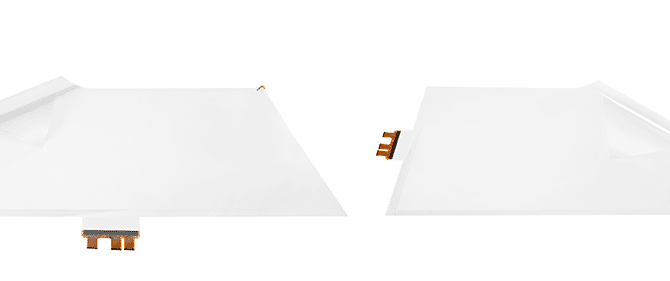

Customize tail position

The touch sensor tails can be placed in almost any position of the sensor, either the larger or the smaller side. The tail can also be manufactured longer to accommodate a better touch controller integration.

Tell me more

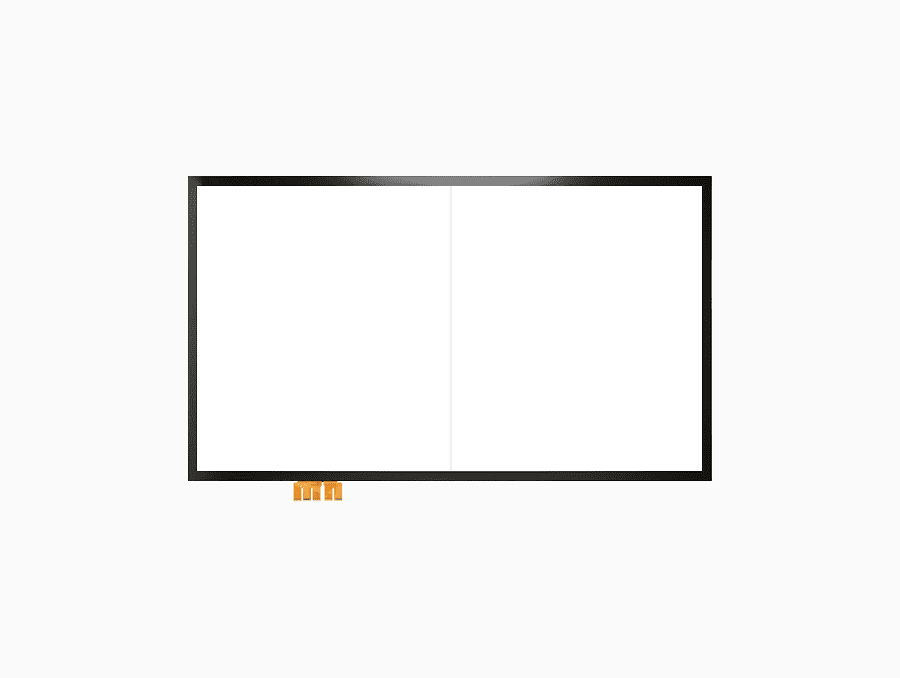

Advanced calibration

You can use just one unit of Skin Fit on top of two or more displays and still command them seamlessly with touch. With the advanced calibration tool you are able to make a geometric calibration on all the screens covered by the sensor, just as easily as if there was only one display.


Finger separation

Single USB for power

Palm detection

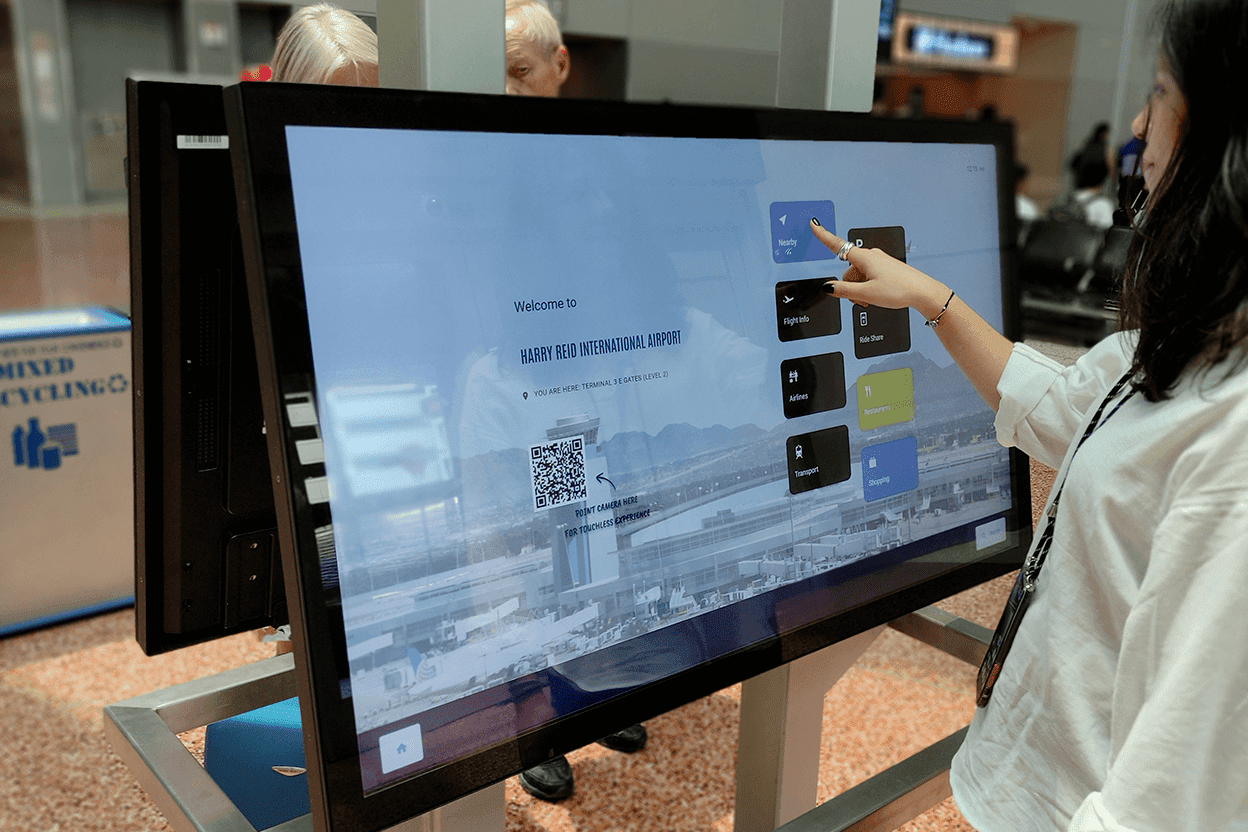

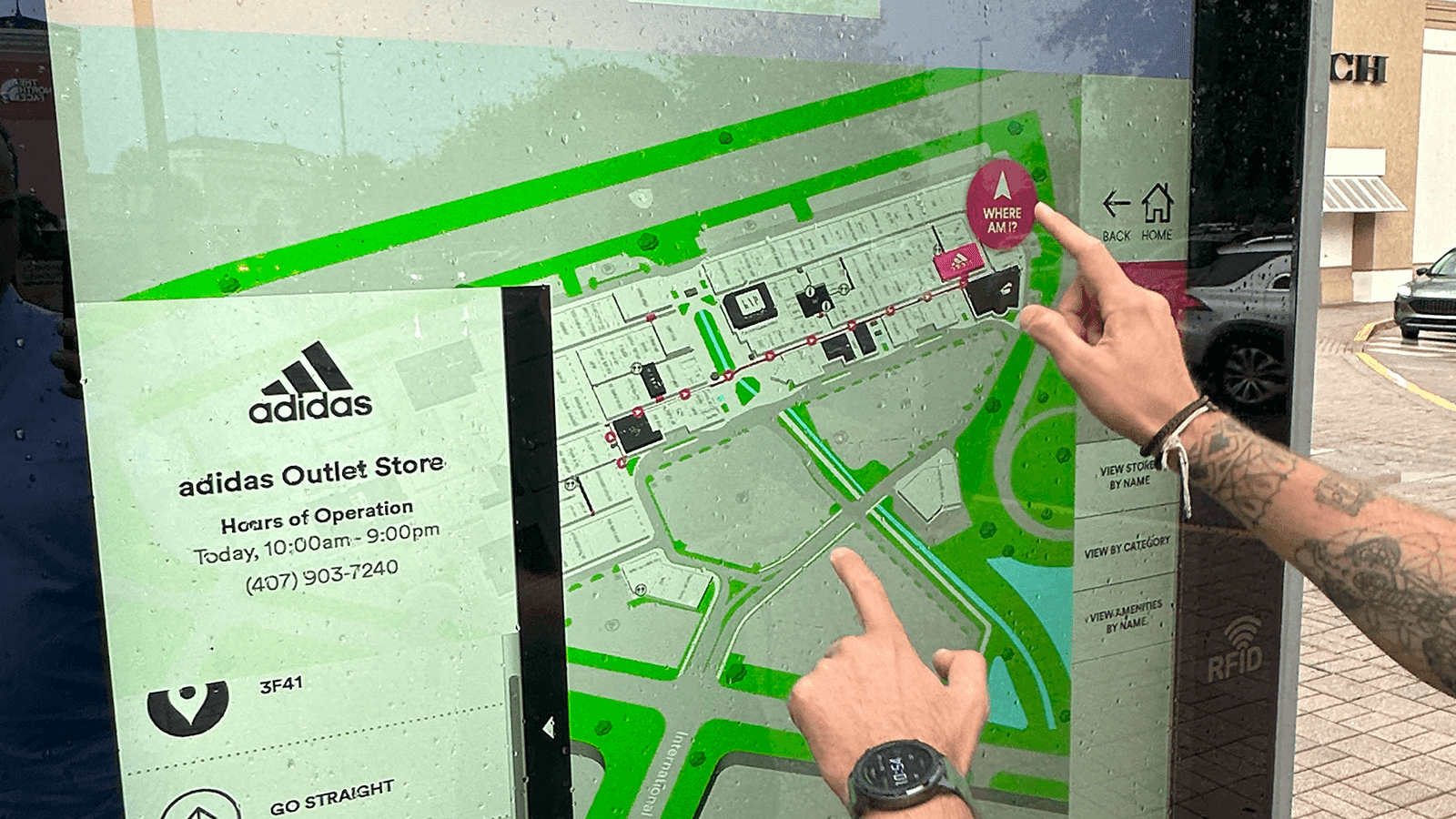

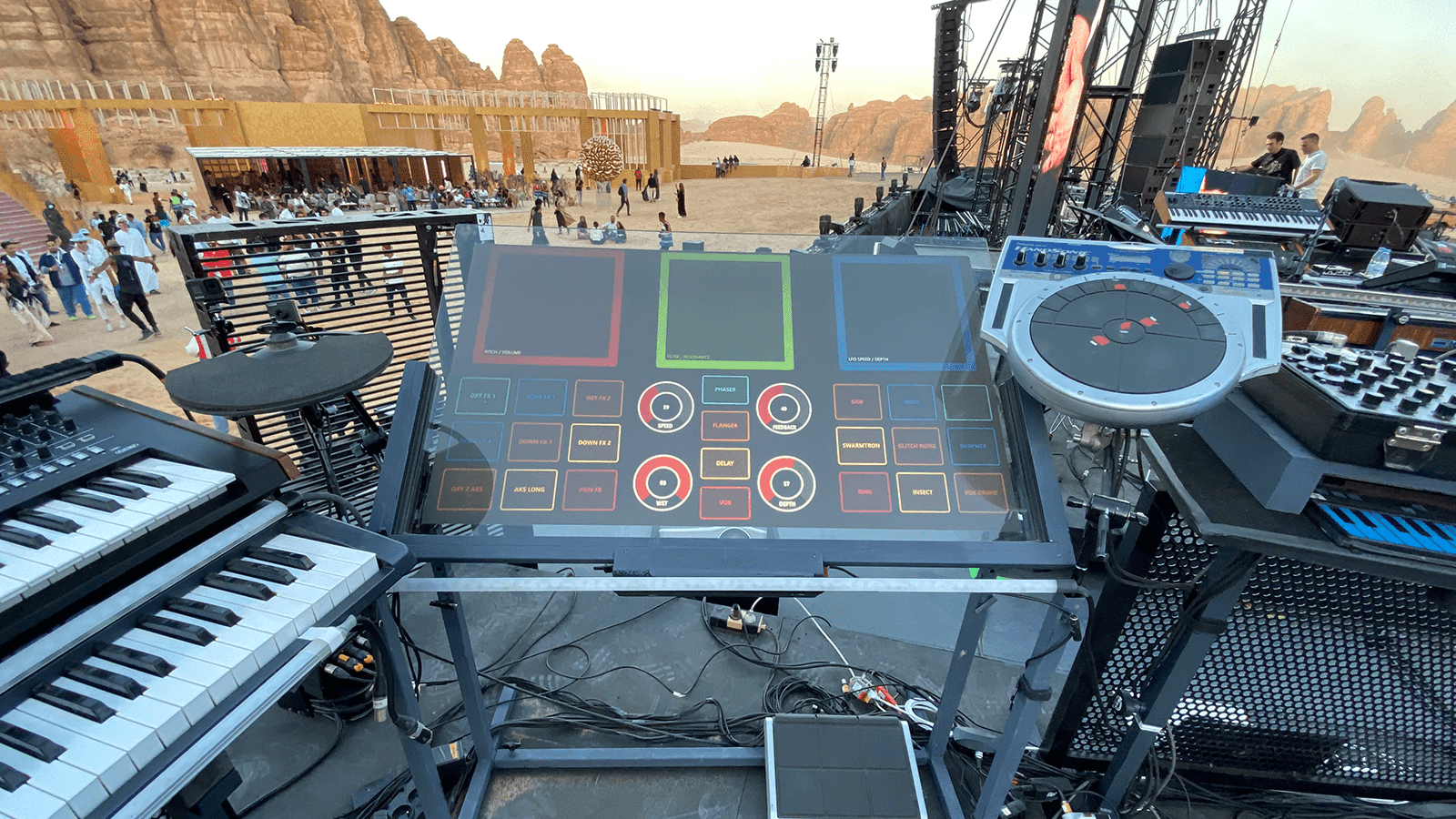

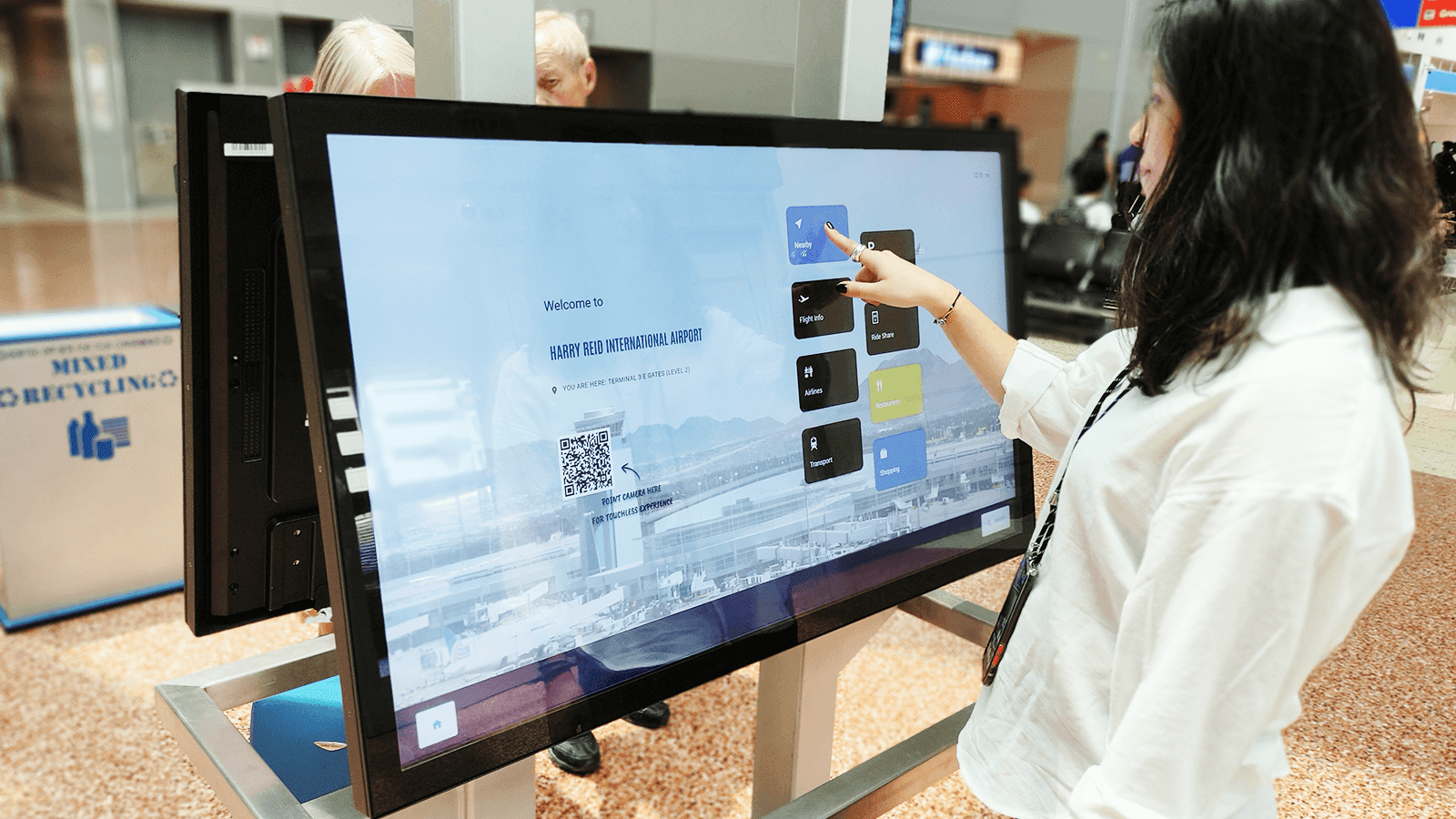

Typical applications

  • Interactive digital signage
  • Retail
  • Entertainment
  • Multitouch tables
  • Digital out of home advertising
  • Industrial
  • Vending

Plug & play

Native multitouch support from OS & single touch

Windows

Android

Linux

Mac OS X

Chrome OS

TUIO protocol


Touch mouse emulation

Digital signage players

Windows embedded

Smart signage platform

Brightsign

Spinetix


Download Technical Specs

Download Technical Specs PDF
